Online Praktikum
Download online praktikum
Handleiding

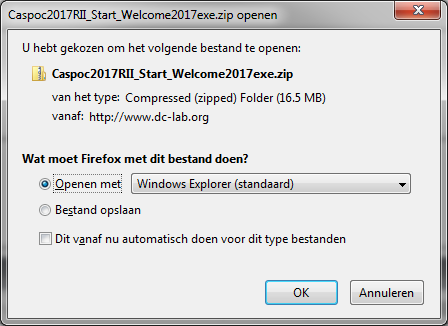

Step Download
Click the download link and select to open with Windows
![](fig/fig1.png)
Step Open zip file

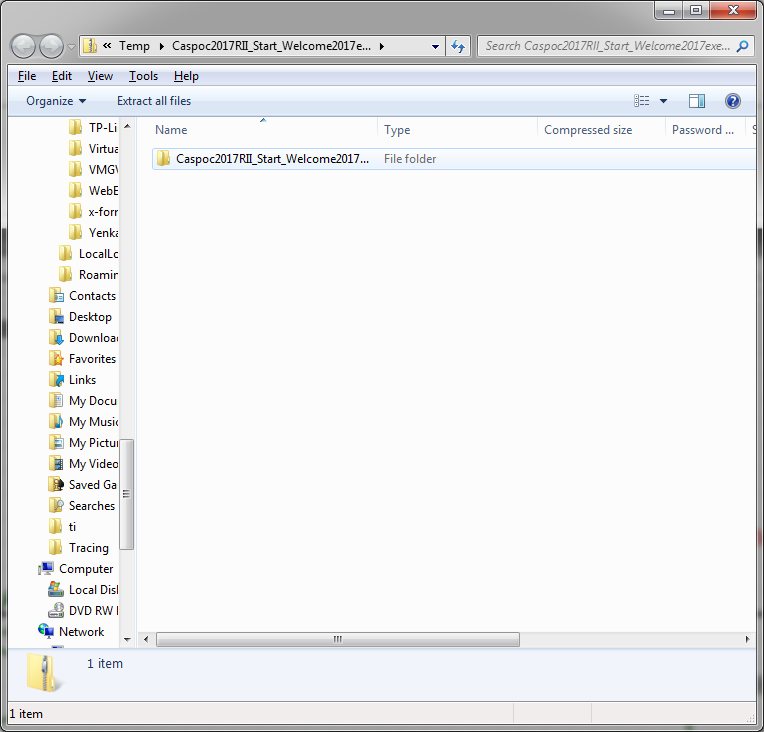

Inside the zip is a folder with program and samples
![](fig/fig2.png)
Step Copy to Harddisk

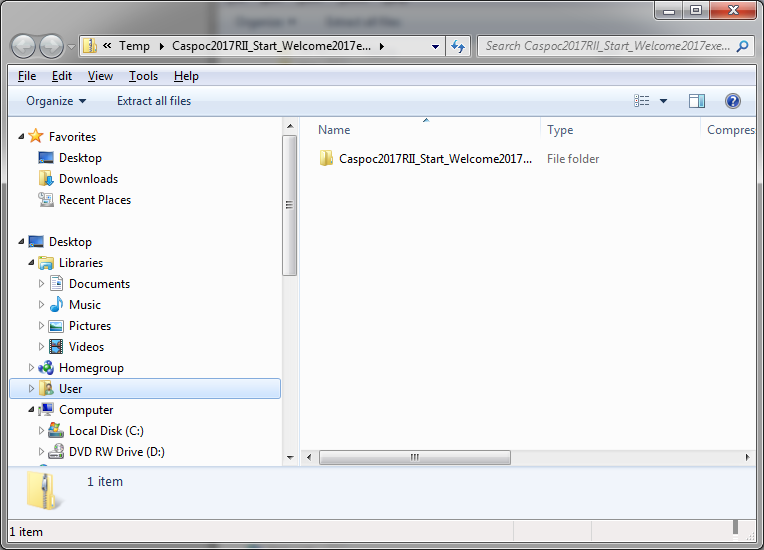

Copy the entire folder to your harddisk
![](fig/fig3.png)
Step Run Welcome

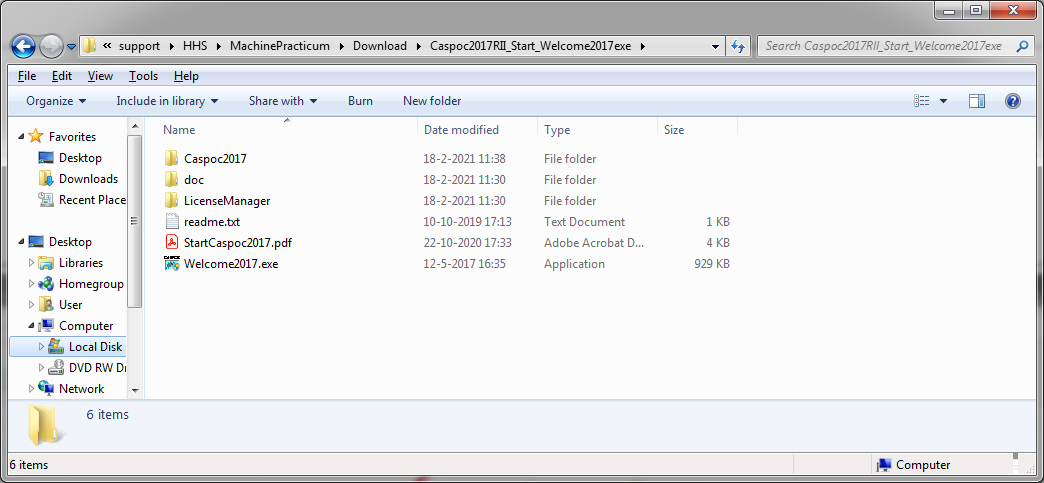

Run the Welcome2017.exe program.
![](fig/fig4.png)
Step Click Yes

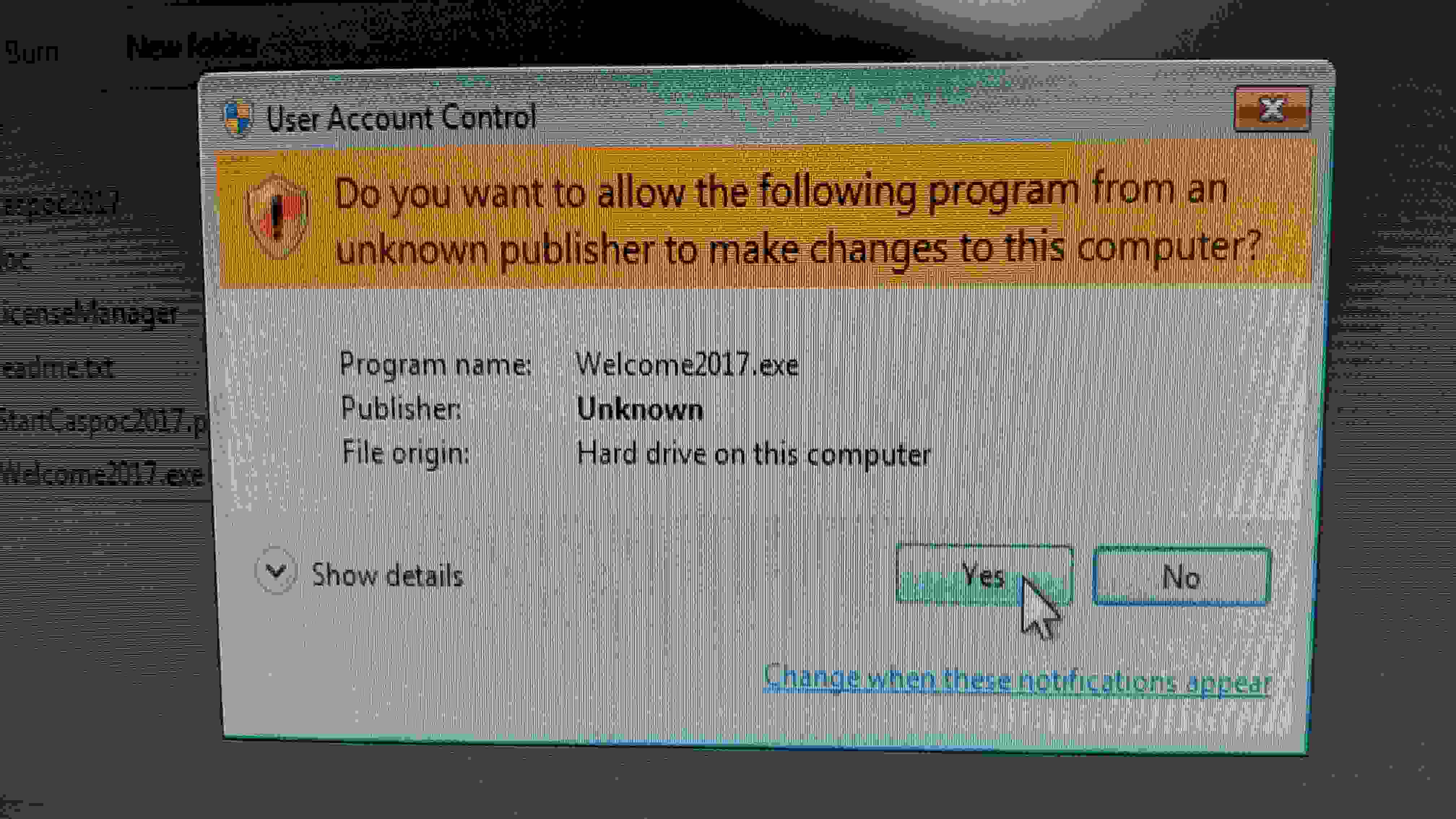

Click [Yes] to allow the program to run, very probably also your virus scanner will scan the executable so it might take some time before the welcome screen pops up!
![](fig/fig5.jpg)

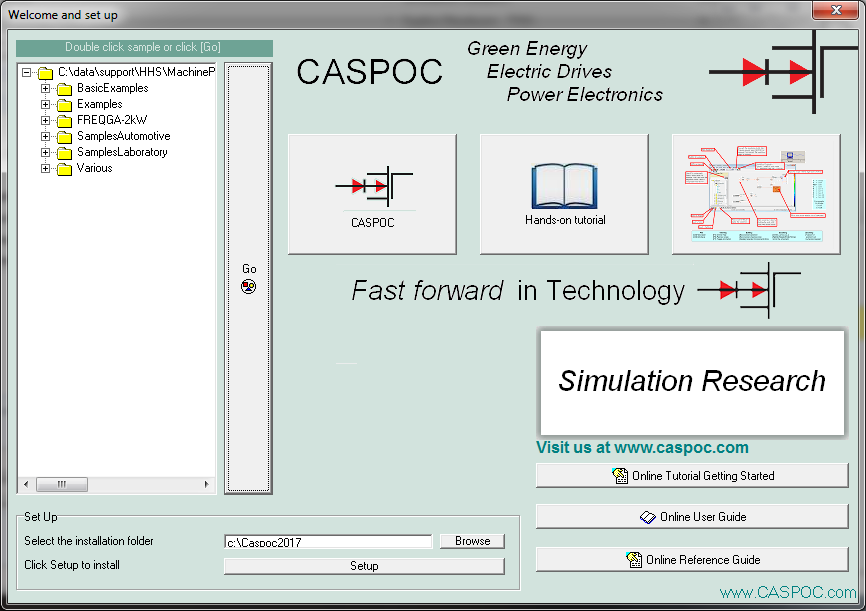

Step Welcome screen

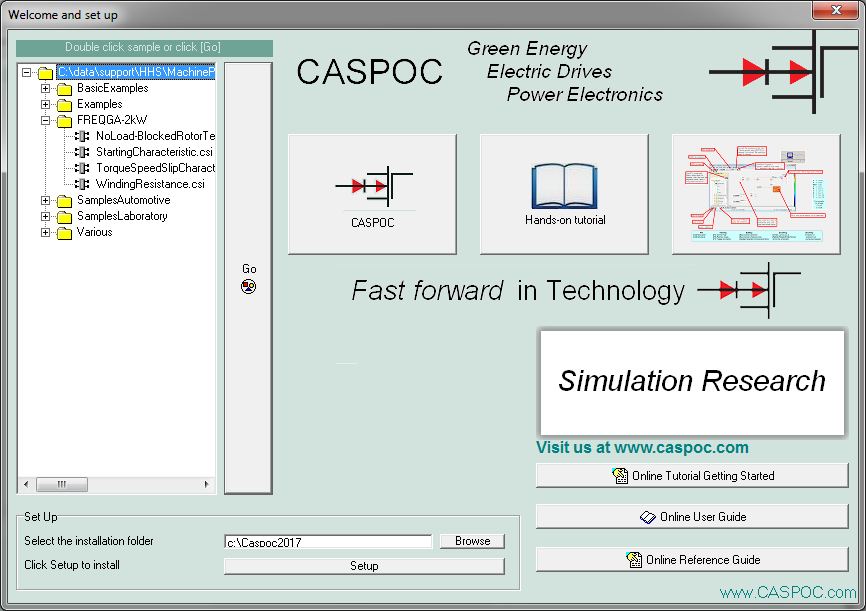

From this screen we can start the samples
![](fig/fig6.png)
Step Start sample
Open the folder section ELENT1 and you will see a list of samples for the practical assignments. Select the sample StartingCharacteristic.csi and select the large button [Go]
![](fig/fig7.png)
Step Result
The simulation is now starting, but very probably again you have to wait for the virus scanner to check the executable.
Sometimes this might take over a minute, so please be patience if nothing happens at first sight. If all goes well the simulation will start and you are able to change parameters, open scopes, enable animation, etc.
![](fig/proef1.png)

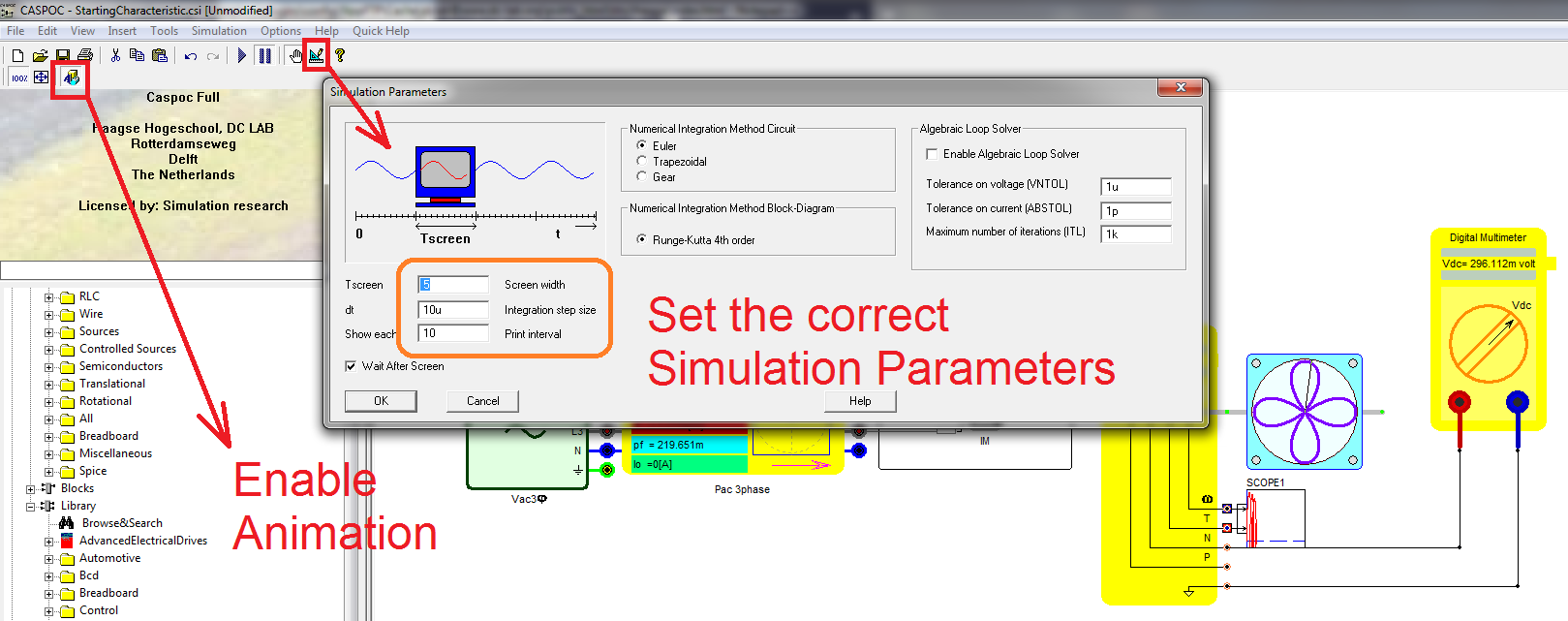

Animation & Simulation Parameters

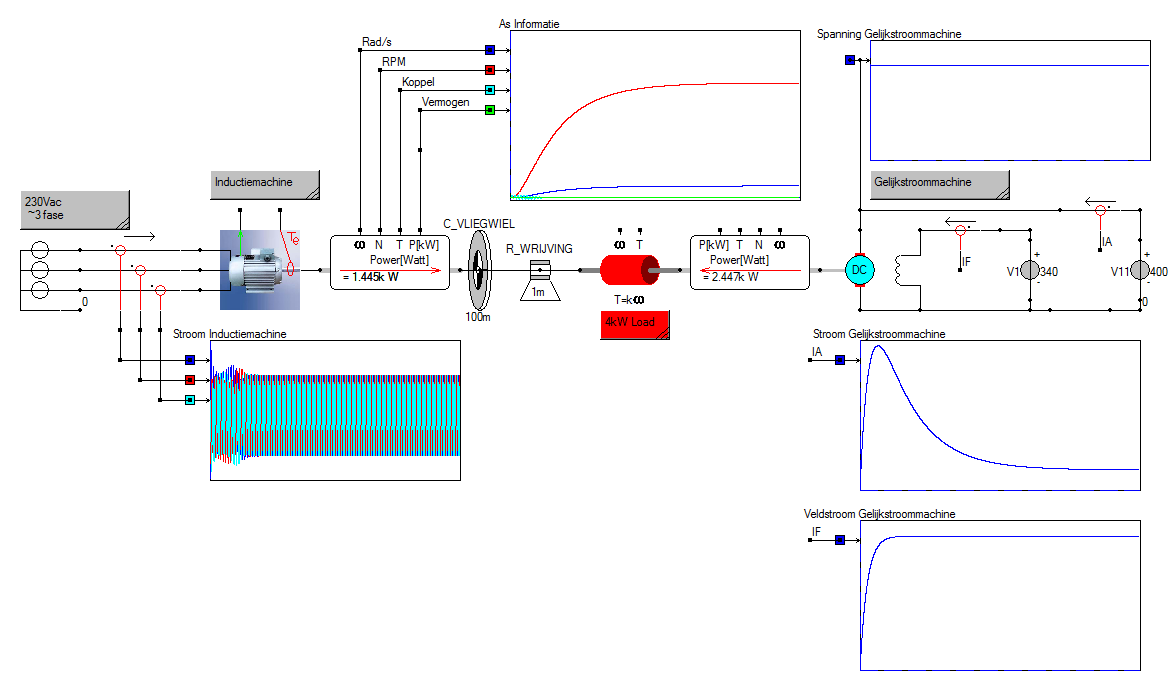

Enable the Animation by clicking the [Animation] button shows you induction machine rotor and fan rotating. The simulation parameters for a good simulation of the power factor are dt=10us. In order to speed up the simulation, select a print interval of [Show Each=10]
![](fig/fig9.png)

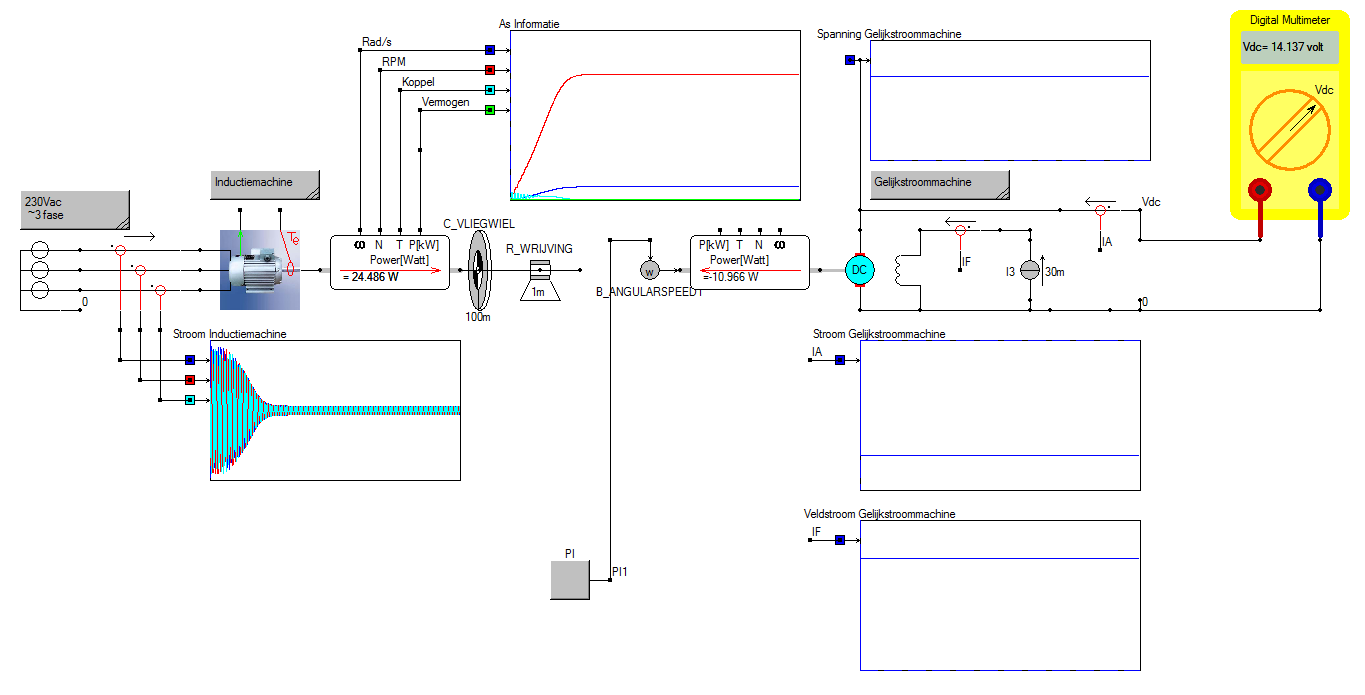

Proef 1

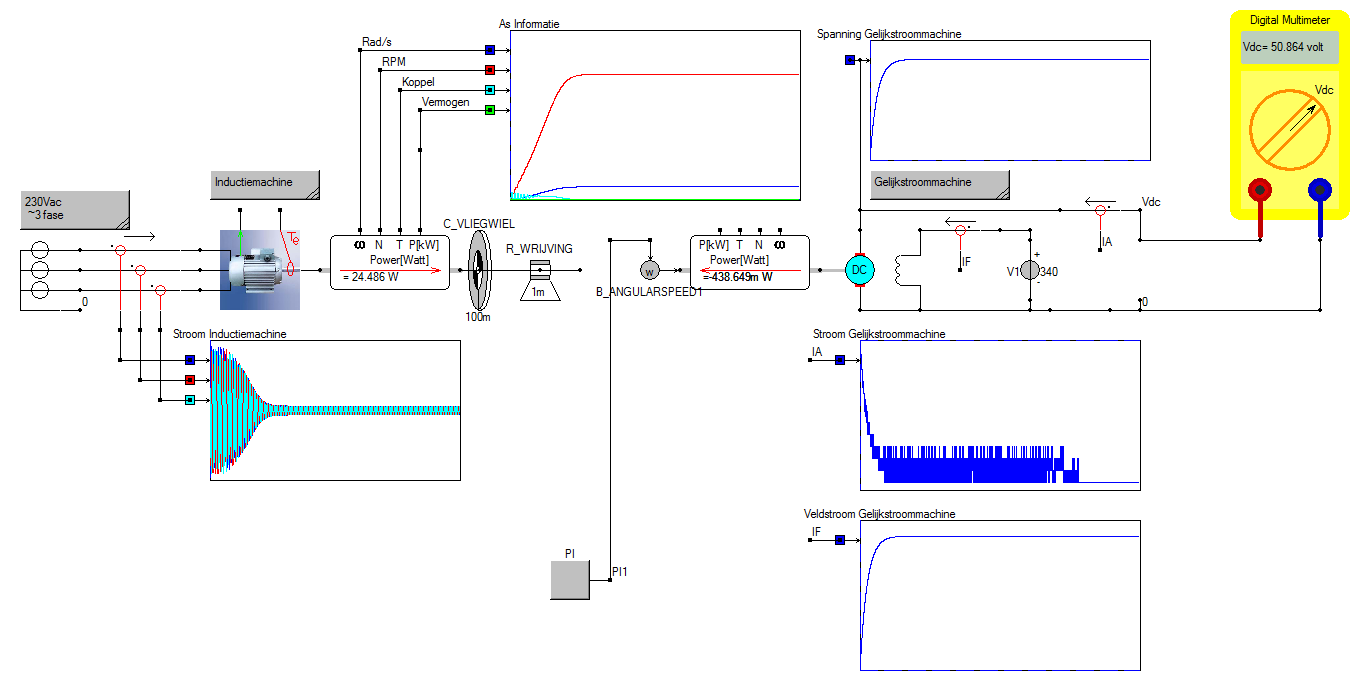

Proef 2
Proef 3
Proef DC Machine

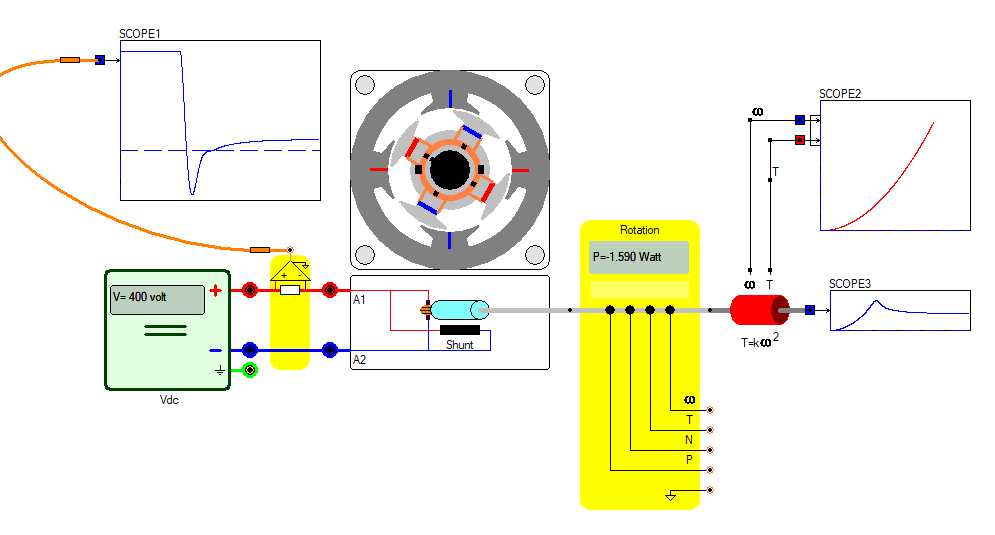

Download the DC motor example
